Superior Ceramic Plug Valves for Demanding Applications

About NGK Ceramic Plug Valves

NGK Plug Valves are engineered to resist attack by abrasive and corrosive chemicals with a solid, cast chemical ceramic lining and plug. Unlike PTFE-lined plug valves, the NGK design provides superior durability with a 3/8" thick cast lining, offering maximum corrosion resistance and longer valve life in all heavy-duty applications.

Key Advantages

3/8" thick cast ceramic lining
Superior to PTFE-lined valves (1/8" lining)
Eliminates liner collapse in vacuum service
Shore hardness D105 (vs D50 for PTFE)
Brinell hardness 650 (vs 200 for Titanium)

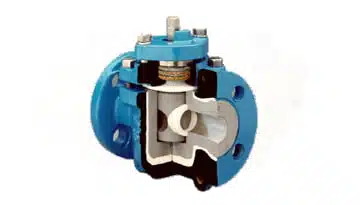

Ceramic Plug Valves

Industry-Leading Performance

NGK ceramic plug valves offer superior performance compared to valves manufactured with other materials. The ceramic construction provides exceptional resistance to corrosion and abrasion in the most demanding chemical process applications.

Resistant to all liquids except hydrofluoric acid and hot caustics
Impermeable construction without pin-holes
High hardness for erosion resistance
Superior to fluoroplastic materials
Ideal for difficult CPI applications

Download Product Catalog

Technical Specifications

Material Properties

Shore hardness: D105
Brinell hardness: 650
3/8" thick cast lining
Solid chemical ceramic construction

Design Features

Vacuum service compatible
No liner collapse
Heavy-duty construction
Long service life

Chemical Resistance

Resistant to most chemicals
Superior to PTFE materials
Impermeable to corrosive fluids
Excellent abrasion resistance

Contact Us About NGK Products

Need assistance with NGK ceramic plug valve selection? Our team is ready to help with technical support, specifications, and application guidance.
